TR-One Fully Adjustable Direct Fit Wheel Mount for Simucube, VRS, Accuforce, OSW, Mige etc

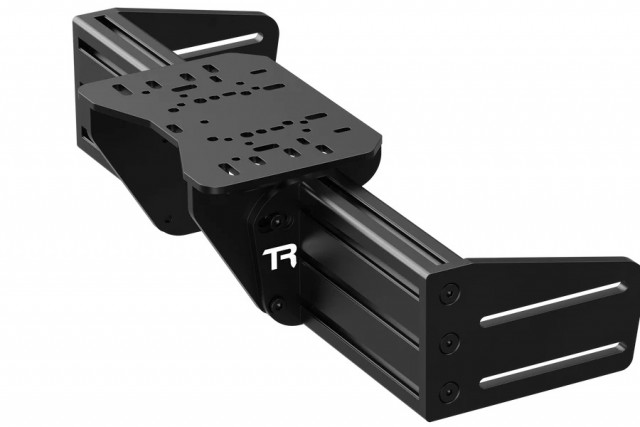

About the TR One Wheel Mounting System
The TR One Wheel System is a Future Proof Wheel Mounting System that allows you to upgrade by replacing only a part of the mount depending on what wheelbase you mount. The base structure is made of thick-walled extruded aluminium and the plates are meticulously crafted from high-quality aluminium then anodized.
The design of the aluminium plates allows for angle and distance adjustment. The base kit (Part Number: TR80-NWMA) consists of 2 x High-Quality 80x40mm Aluminium Profiles and 4 Bed Anodised Aluminium Plates. Optional wheel mounts include a wheel deck and direct-drive front mounting plate - but this list will expand as more wheelbase brands become available. The plates themselves are extremely rigid and have a lot of adjustment for angle and forward/backwards fine-tuning - to get a perfect position!
Angle Adjustment: Fully Adjustable Mount with up to 12° degree tilt angle PLUS greater angle adjustments of the outer plates
Material: Anodised Black Aluminium Plates, Extruded Aluminium Profile, and Carbon Steel
Rig Compatibility: This part is compatible with Trak Racer Extruded Aluminium Rigs and other DIY Builds.
Not Compatible with Trak Racer TR80-LITE due to the wheel uprights only being 660mm/26" tall (compared to 780mm/30.7" on the TR80, TR120, and TR160).
Full Mount Width (including 120 x 40mm profile): 580mm/22.83"
Front Direct Drive Mount Compatibility:
| Trak Racer Direct Drive (all Variants) Wheelbase |
Simagic Alpha / Alpha Mini/ Ultimate |
| Simucube SC1 / SC2 Sport, Pro, Ultimate |
Lenze MCS12 series |
| VRS Force Pro |
Kollmorgen AKM 52-53-54 (OSW and Leo Bodnar Simsteering systems) |
| AccuForce V1/V2 (turn the top cover around to fit) |
Ricmotech Mini-Mite Direct-Drive Steering System Base |
| MiGe 130ST(small and big) |
Immsource ET3 and ET5 |
| Bodnar 53 series |
Contact us if your product is not listed |
