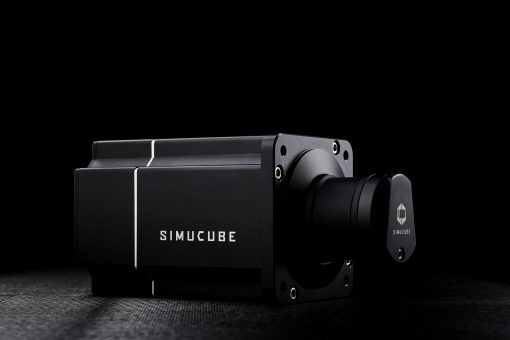

Simucube 2 PRO

TECHNICAL SPECIFICATIONS, SIMUCUBE 2 PRO

Passionately designed for eSports, Technology and Motorsports enthusiasts Simucube 2 Pro wheel base’s 25 Nm of torque is enough to give you deep immersion with any track, car, and condition. With Pro, one might forget they are in a simulation.

Combined with an exceptionally high torque response rate Pro motor, the wheel base will deliver the sharpest kinks at a clarity not seen in the Direct Drive Sim Racing scene before. The torque response rate is adjustable to the driver’s preferences.

Simucube 2 Pro is destined to set the new golden standard for high-end class Direct Drive Force Feedback wheels in Sim Racing and Racing Simulators.

Package includes: SC2 Pro wheel base, power supply, cables, EU-power cable, standard external Stop button

Does not include: Wheelside SQR Kit

KEY FEATURES:

• Wireless Wheel™ support: Yes
• Simucube Quick Release™: Yes
• Torque reconstruction processing: Yes
• Static force reduction¹ : Yes
• Damping, inertia and friction filters: Yes
• Ultra low latency mode² : Yes
• Adjustable torque slew rate limit³ : Yes
• Non-linear force saturation⁴ : Yes
• Super Fine tuning filters⁵ : No (Ultimate: Yes)

¹ Allows reducing the static torque needed to turn the wheel on heavy cars while still passing thru fine force details

² Minimizes FFB delay, resulting in better responsiveness

³ Reduces the sharpness of the kick in high torque spikes

⁴ Reduces peak torque in non-linear way

⁵ Allows fine adjustment of detailed filter parameters

TECH SPECS:

• Max torque: 25 Nm
• Max torque slew rate: 8.0 Nm/ms
• Angle sensor resolution: 22 bit
• Power supply: 2 x 280 W
• Size: 130 x 130 x 270 mm
• Fixing holes: 4 x M8, threaded
• Flange bolt pattern Ø: 145 mm
• Flange center Ø: 110 mm
• Warranty: 24 months

INCLUDED IN THE PACKAGE:

• Simucube 2 Direct Drive motor
• Simucube Quick Release™ – motor side unit
• 50.8 mm – 70 mm wheel adapter
• Power unit with euro electrical outlet*
  • *Euro utility cable(s) are separately in the package and can be replaced with a cable that fits local utility socket
• USB cable for PC connection
• Quick start guide

Manual:

Simucube_2_User_Guide.pdf (granitedevices.com)

Drivers:

Simucube 2 True Drive releases - Granite Devices Knowledge Wiki
