TR-One Black Universal Fully Adjustable Direct Fit Wheel Deck

PrisNOK1 950,00 inkl. mva.
  • Produktinfo
  • Produktanmeldelser (0)

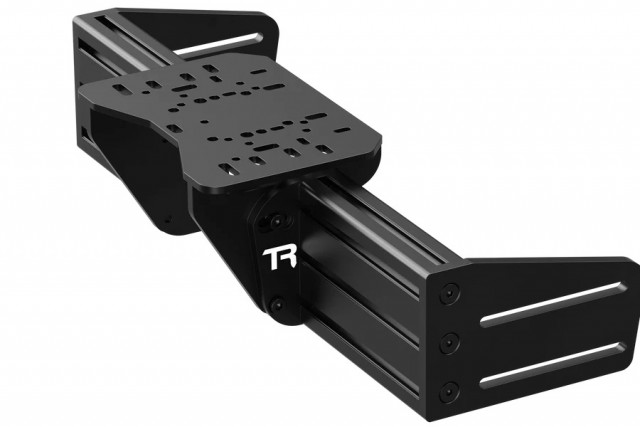

TR-One Black Universal Fully Adjustable Direct Fit Wheel Deck Overview

TR-One Universal Fully Adjustable Direct Fit Wheel Deck

About the TR One Wheel Mounting System
The TR One Wheel System is a Future Proof Wheel Mounting System that allows you to upgrade by replacing only a part of the mount depending on what wheelbase you mount. The base structure is made of thick-walled extruded aluminum and the plates are meticulously crafted from high-quality aluminum then anodized.

The design of the aluminum plates allows for angle and distance adjustment. The base kit (Part Number: TR80-NWMA) consists of 2 x High-Quality 80x40mm Aluminium Profiles and 4 Black Anodised Aluminium Plates. Optional wheel mounts include a wheel deck and direct-drive front mounting plate - but this list will expand as more wheelbase brands become available. The plates themselves are extremely rigid and have a lot of adjustment for angle and forward/backward fine-tuning - to get a perfect position!

Angle Adjustment: Fully Adjustable Mount with up to 12° degree tilt angle PLUS greater angle adjustments of the outer plates

Material: Anodised Black Aluminium Plates, Extruded Aluminium Profile, and Carbon Steel

Rig Compatibility: This part is compatible with Trak Racer Extruded Aluminium Rigs and other DIY Builds.

Not Compatible with Trak Racer TR80-LITE due to the wheel uprights only being 660mm/26" tall (compared to 780mm/30.7" on the TR80, TR120, and TR160).

Full Mount Width (including 120 x 40mm profile): 580mm/22.83"

Steering Wheel Deck Compatibility:

Trak Racer Direct Drive (all Variants) Wheelbase AccuForce V1/V2
Turtle Beach Velocity One Race Simagic Alpha Mini DD, Alpha DD, Alpha Ultimate Direct Drive
Thrustmaster T500, T300, T150, TC-PS, TS-XW, TX, 248, T-GT, T80, TMX and T-GT II Moza R3, R5, R9, R12, R16, R21 DD Wheel Bases
Thrustmaster T818 with an Thrustmaster adapter Asetek La Prima, Forte and Invicta DD wheel bases (with adapter SKU: TR-APDD)
Logitech G25, G27, G29, G920, G923, Logitech G PRO Cammus 15Nm Direct Drive
Fanatec Elite, Clubsport, Clubsport DD, Clubsport DD+, Podium DD1/DD2, CSL DD , Fanatec GT DD Pro and CSL Elite PXN V12 DDL

Other Wheel Bases - requires mounting bracket (Trak Racer Direct Drive Mount)
Simucube SC1 / SC2 Sport, Pro, Ultimate Simagic Alpha / Alpha Mini/ Ultimate
VRS Force Pro Lenze MCS12 series
AccuForce V1/V2 (turn the top cover around to fit) Kollmorgen AKM 52-53-54 (OSW and Leo Bodnar Simsteering systems)
MiGe 130ST(small and big) Ricmotech Mini-Mite Direct-Drive Steering System Base
Bodnar 53 series Immsource ET3 and ET5

Also, Flight/Heavy Equipment
Flight Sim Yoke – Yoko Neo Logitech Heavy Equipment
Logitech Flight Yoke System (by clamp) Turtle Beach Velocity One Flight
Logitech Flight Switch/Multi/Instrument Panels Brunner Yoke CLS-E MK-II
