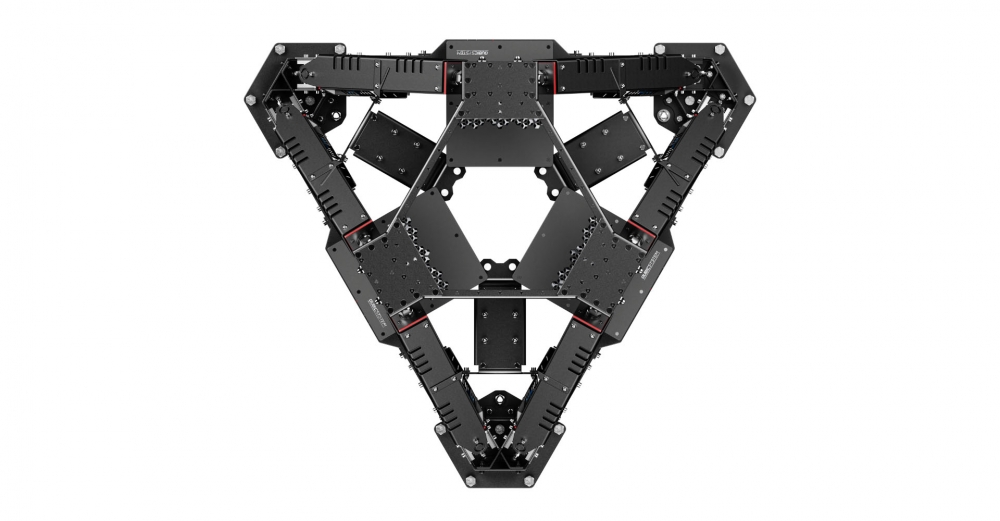

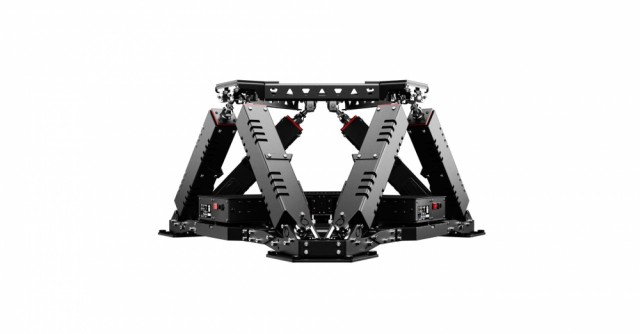

The QS-625 motion platform as a perfect base for flight and car simulators. Load capacity up to 250 kg/551 lb, compact size, and ultra-quiet operation, are not the only advantages of a six-axis machine. This 6DoF motion system is equipped with rigidity, high positioning accuracy and real-time vibrations, which is mainly intended for professional applications in the field of flight and driving simulation.
- Super silent – extremely quiet operation
- Used by professional race car drivers and pilots around the world
- Easy to adapt to 3rd party cockpits
- Supported by dedicated software QubicManager: motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles
- VR HeadWay technology support (VR sickness compensation)
- Over 80+ integrated and supported racing and flight games
- Compatible with professional simulation applications – Motion SDK (FSMI or FSDI) for software developers
- Proudly made in EU: Engineered, Designed and Manufactured in Poland
Box with QS-625 included:
- QS-625 Motion Platform
- QubicManager software download
- USB and power cables
- Nuts and Bolts required for assembly
- Product Manual
Box dimensions:
94 cm x 150 cm x 130 cm | 37 in x 59 in x 51 in
GENERAL SPECIFICATION OF QS-625
Architecture: 6DOF
Payload: 250 kg | 551 lb
Product weight: 260 kg | 573 lb
Total width 1258 mm | 49,5 in
Total length 1437 mm | 56,5 in
Min height 615 mm | 24,2 in
POWER REQUIREMENTS
Power supply requirements: 230V 50-60HZ
Average power (Watts): 199
Average power (VA): 2114,53
Peak Current (A): 8,84
Power supply requirements: 120V 50-60HZ
Average power (Watts): 238
Average power (VA): 2160,31
Peak Current (A): 17,45
Even most advanced hardware is nothing without good software. QubicManager powered by Motion Systems company is professional and specialized software for the platform and is click and play compatible with all major racing and flight titles on PC and constantly updated to support new applications as they are released. Gives user possibilities of motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles.
Over 80 integrated and supported racing and flight games.
