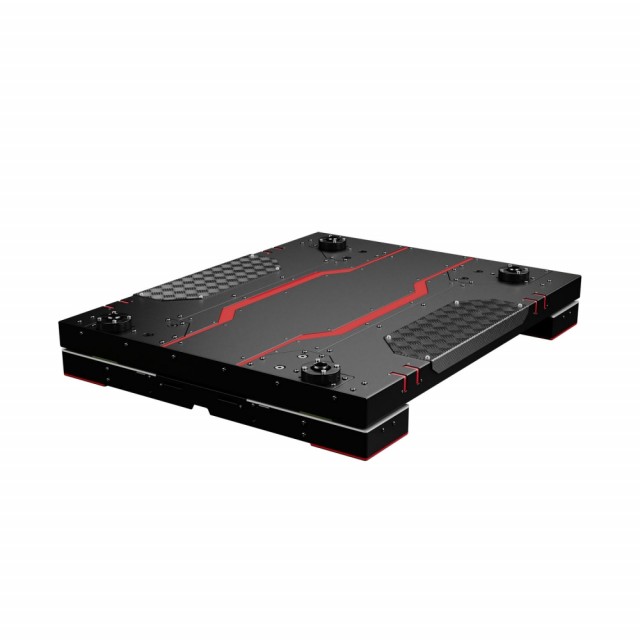

QS-CH2

2DoF motion platform that gives the SURGE and YAW motion for even better of feeling vehicle’s traction loss, breaking and accelerating. The motion system based on world’s fastest linear actuator’s technology provides incredible levels of vehicle feedback

PrisNOK133 750,00 inkl. mva.
Ca 8 ukers leveringstid. Frakt kommer i tillegg.
  • Produktinfo
  • Spesifikasjon
  • Inkludert
  • Software
  • Produktanmeldelser (0)

2DoF motion platform that gives the SURGE and YAW motion for even better of feeling vehicle’s traction loss, breaking and accelerating. The motion system based on world’s fastest linear actuator’s technology provides incredible levels of vehicle feedback to the driver. This motion platform is suitable for Rally, Drift, GT and F1 simulations. The platform is fully compatible with Qubic System 3DOF actuator’s set and QS-CH1 motion cockpit.



PRECISE VEHICLE FEEDBACK AND OVERSTEER

The QS-CH2 provides the most precise traction loss feeling by moving the entire cockpit. The motion system is based on the world’s fastest linear actuator’s technology, which delivers an incredible level of instant feedback to the driver. This motion platform is suitable for Rally, Drift and any racing simulations. By providing the oversteering effect, the platform can be used effectively for real and sim racing drivers training making them feel what happens to the front and the rear of the vehicle.

APPLICATIONS

QS-CH2 platform has been designed to provide the most immerse traction loss feeling as it gets to teach them positive reactions and earn muscle memory needed to keep the vehicle on the best possible racing line. Drivers must fully control the slip of the front and rear wheels on their vehicles. They want to master the balance between total loss of grip and smooth corner entry.



TRACTION LOSS EFFECT AND ACCELERATION / DECELERATION

QS-CH2 traction loss + surge platform is a single part of the entire rig. The QS-CH2 traction loss motion platform may not seem like a necessity, but racers who try the traction loss and get used to it find it hard to go back.

  • Over braking  is when you brake too hard, and your wheels end up locking. The traction loss platform moves the rig to simulate backward g-force on driver’s body.
  • Over steering is when the back-end of the virtual vehicle ends up slipping because you turned your steering too hard. The traction loss simulator moves the cockpit to the side with respect to the oversteering direction. During over-steering, the back-end of your vehicle is what primarily slips.
  • Over accelerating is when driver press the throttle too hard, too quickly, causing them to spin in their position. The traction loss platform moves the cockpit backwards to simulate g-force forwards on driver’s body.

2 DoF

The QS-CH2 adds an additional two axes of freedom to the movement. The high dynamic range of motion in the SURGE axis combined with the wide range of motion in the YAW axis enhances the experience and provides an extremely realistic user experience.

  • Based on world’s fastest Qubic System linear actuators
  • Compact and lightweight design
  • Suitable for Rally, Drift, GT and other racing simulations
  • Supported by dedicated software QubicManager: motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles
  • Traction loss

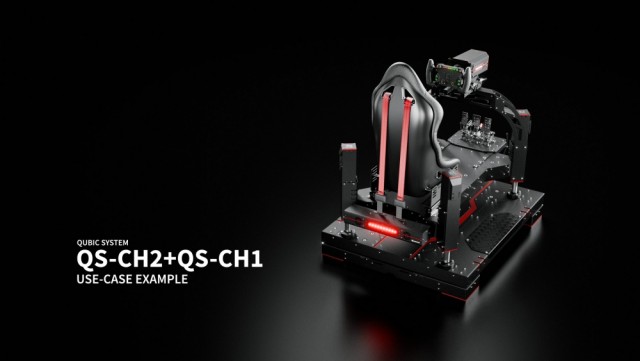

  • Also, available as expansion of QS-CH1 motion cockpit
  • Proudly made in EU: Engineered, Designed and Manufactured in Poland



QS-CH2 MOTION PLATFORM



Architecture: 2DOF
Platform Weight: 160 kg | 352.74 Ib
Gross Moving Load: 300 kg | 661.39 lb



QS-CH2 SYSTEM PERFORMANCE



Surge: – 50 mm, 50 mm
Yaw: – 7.2°, 7.2°



QS-CH2  DIMENSIONS



Total length: 1328.95 mm | 52.32 in
Total width: 1072.5 mm | 42.22 in
Total height: 213 mm | 8.39 in



QS-CH2 POWER SUPPLY REQUIREMENTS
115 / 230 VAC Single Phase



CONNECTION: USB



The QS-CH2 is transported in a specially adapted transport box.

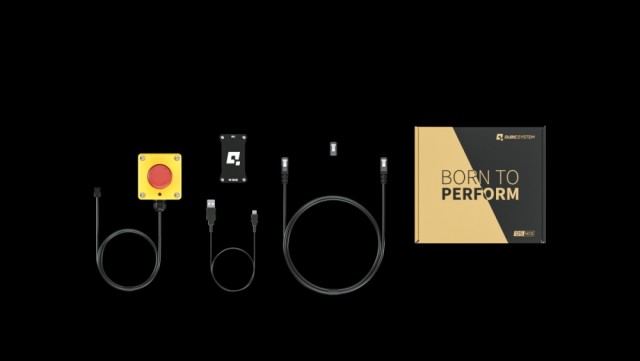

Box with QS-CH2 included:

  • QS-CH2 Motion Platform
  • QubicManager software download
  • USB and power cables
  • Nuts and Bolts required for assembly
  • Set of wheels for transport
  • Product Manual
  • Notice: Requires separate purchase of QS-MC6 (motion platform controler)

Even most advanced hardware is nothing without good software. QubicManager powered by Motion Systems company is professional and specialized software for the platform and is click and play compatible with all major racing and flight titles on PC and constantly updated to support new applications as they are released. Gives user possibilities of motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles.

Over 80 integrated and supported racing and flight games.
