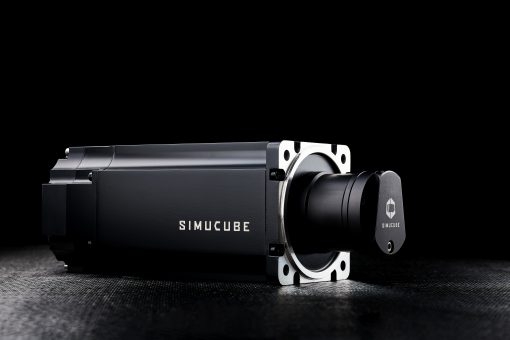

Simucube 2 Ultimate

TECHNICAL SPECIFICATIONS, SIMUCUBE 2 ULTIMATE

The best possible Direct Drive wheel base designed for professional racers, racing teams and race car drivers has an abundant 32 Nm of torque and maxed-out torque response rate are at your disposal at anytime and anywhere. Simucube 2 Ultimate wheel base is based on Austrian-made maximally dynamic industrial motor optimized for racing simulation. It’s equipped with a 24-bit resolution Hiperface angle sensor to be fully utilized by the most advanced signal processing unit seen in racing simulators.

Ultimate exclusively comes with advanced fine-tunable signal processing to make the experience as personalized and authentic as humanly possible. This model was designed with a “only the best is good enough” mindset to give you the ultimate competitive advantage.

Package includes: SC2 Ultimate wheel base, power supply, cables, EU-power cable, Premium Torque off button, Wheelside SQR Kit

KEY FEATURES:

• Wireless Wheel™ support: Yes
• Simucube Quick Release™: Yes
• Torque reconstruction processing: Yes
• Static force reduction¹ : Yes
• Damping, inertia and friction filters: Yes
• Ultra low latency mode² : Yes
• Adjustable torque slew rate limit³ : Yes
• Non-linear force saturation⁴ : Yes
• Super Fine tuning filters⁵ : Yes

¹ Allows reducing the static torque needed to turn the wheel on heavy cars while still passing thru fine force details

² Minimizes FFB delay, resulting in better responsiveness

³ Reduces the sharpness of the kick in high torque spikes

⁴ Reduces peak torque in non-linear way

⁵ Allows fine adjustment of detailed filter parameters

TECH SPECS:

• Max torque: 32 Nm
• Max torque slew rate: 9.5 Nm/ms
• Angle sensor resolution: 24 bit Hiperface
• Power supply: 1000 W
• Size: 115 x 115 x 310 mm
• Fixing holes: 4 x M8, through hole
• Flange bolt pattern Ø: 130 mm
• Flange center Ø: 110 mm
• Warranty: 60 months

INCLUDED IN THE PACKAGE:

• Simucube 2 Direct Drive motor

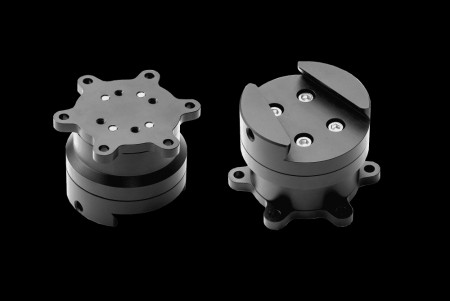

• Simucube Quick Release™ – motor side unit
• 50.8 mm – 70 mm wheel adapter
• Power unit(s*) with euro electrical outlet**
  • *Simucube 2 Pro has 2 power units
  • **Euro utility cable(s) are separately in the package and can be replaced with a cable that fits local utility socket
• USB cable for PC connection
• Quick start guide

Manual:

Simucube_2_User_Guide.pdf (granitedevices.com)

Drivers:

Simucube 2 True Drive releases - Granite Devices Knowledge Wiki
