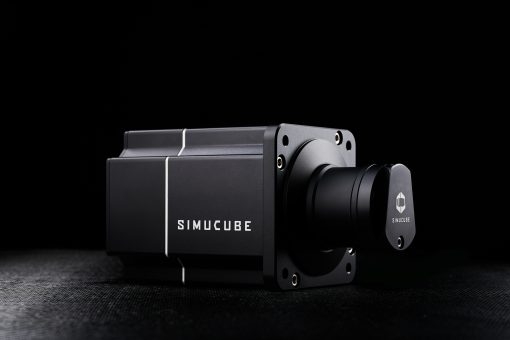

Simucube 2 Sport

TECHNICAL SPECIFICATIONS, SIMUCUBE 2 SPORT

Enter the adrenaline pumping Direct Drive Force Feedback High-end Sim Racing experience club. Sport comes with 17 Nm of direct drive torque and Simucube 2 benefits. Simucube 2 Sport wheel base delivers serious amounts of juice to bring up adrenaline-filled sweat to the skins of the drivers. Sport has comparable responsiveness and performance of the top-end models of world-famous Simucube 1.

Package includes: Simucube 2 Sport wheel base, power supply, cables, EU-power cable, standard external Stop button

Does not include: Wheelside SQR

KEY FEATURES:

• Max torque: 17 Nm
• Wireless Wheel™ support: Yes
• Simucube Quick Release™ : Yes
• Torque reconstruction processing: Yes
• Static force reduction¹ : Yes
• Damping, inertia and friction filters: Yes
• Ultra low latency mode² : Yes
• Adjustable torque slew rate limit³ : No (Pro/Ultimate: Yes)
• Non-linear force saturation⁴ : No (Pro/Ultimate: Yes)
• Super Fine tuning filters⁵ : No (Ultimate: Yes)

¹ Allows reducing the static torque needed to turn the wheel on heavy cars while still passing thru fine force details

² Minimizes FFB delay, resulting in better responsiveness

³ Reduces the sharpness of the kick in high torque spikes

⁴ Reduces peak torque in non-linear way

⁵ Allows fine adjustment of detailed filter parameters

TECH SPECS:

• Max torque slew rate: 4.8 Nm/ms
• Angle sensor resolution: 22 bit
• Power supply: 280 W
• Size: 130 x 130 x 250 mm
• Fixing holes: 4 x M8, threaded
• Flange bolt pattern Ø: 145 mm
• Flange centering Ø: 110 mm
• Warranty: 24 months

INCLUDED IN THE PACKAGE:

• Simucube 2 Direct Drive motor
• Simucube Quick Release™ – motor side unit
• 50.8 mm – 70 mm wheel adapter
• Power unit(s*) with euro electrical outlet**
  • *Simucube 2 Pro has 2 power units
  • **Euro utility cable(s) are separately in the package and can be replaced with a cable that fits local utility socket
• USB cable for PC connection
• Quick start guide

Manual:

Simucube_2_User_Guide.pdf (granitedevices.com)

Drivers:

Simucube 2 True Drive releases - Granite Devices Knowledge Wiki
