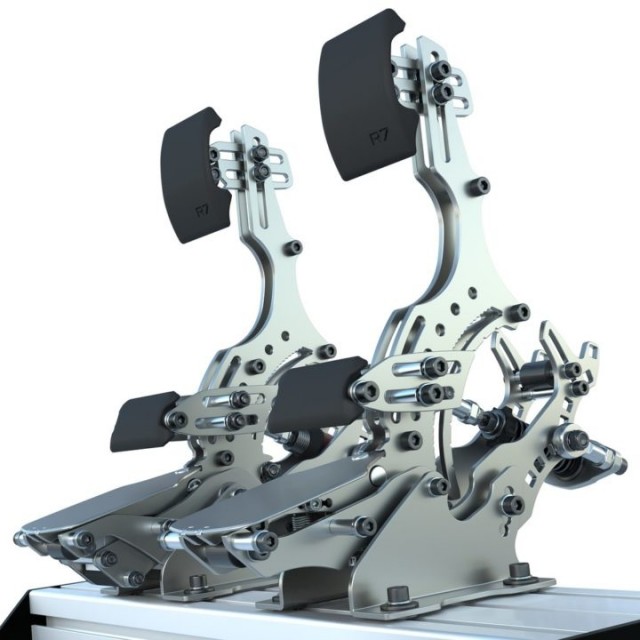

SIMGRADE° R7 Pedals med gass,brems og clutch

Looking to maximize pedal control and feed level accuracy? Look no further. All aspects of the R7 pedals have been designed with unmatched adjustability and best possible ergonomics in mind.

Packed with innovative features to match the driver’s preference perfectly. Result: a level of control yet to be seen.

The essence of R7 pedals is to provide a competitive edge. It’s up to you to capitalize on it.

KEY FEATURES:

• Heavy duty stainless steel construction
• Pedal control and feed level accuracy practically doubled via dual action pedal arm design
• Heel can travel up / down with foot resulting in superior pedal control and feed level accuracy
• Fully adjustable pedal faces & heel supports for optimal pedal feel and ergonomics
• Load cell used in all pedals throttle, brake & clutch
  • Brake: 200 kg load cell / max load from foot: 100 kg
• Silent operation ensured by using ball bearings and spherical rod-ends
• Maintenance free: no lubrication required
• Mounting pattern (click to open): 87 mm (lateral) x 80 mm (longitudinal)
  • ⇒ Can be mounted directly to aluminum profile (minimum 40×120 spec)
• Adjustable pedal tilt angle +8 / -16 degrees
• Super easy & fast adjustments for pedal travel, pedal feel and required operating force
• Adjustable max. compression for each polyurethane spring in 1 mm steps
• Adjustable limiter for brake travel (does not limit load, only travel)
• 12 bit resolution
• Calibration software with
  • Adjustable dead zones
  • Non-linear response curves
  • Save to file & load from file feature for profiles
• Pedal-to-controller box cable lengths: brake 35 cm, throttle 25 cm
• Double shielded USB cable
• Controller box equipped with mounting holes (M4)
• Can be mounted directly to ‘industry standard’ 80/20 aluminum profile (min. 40×120 mm spec or 2 separate profiles)
• Designed, manufactured and assembled in Finland
• Warranty: 2 years
