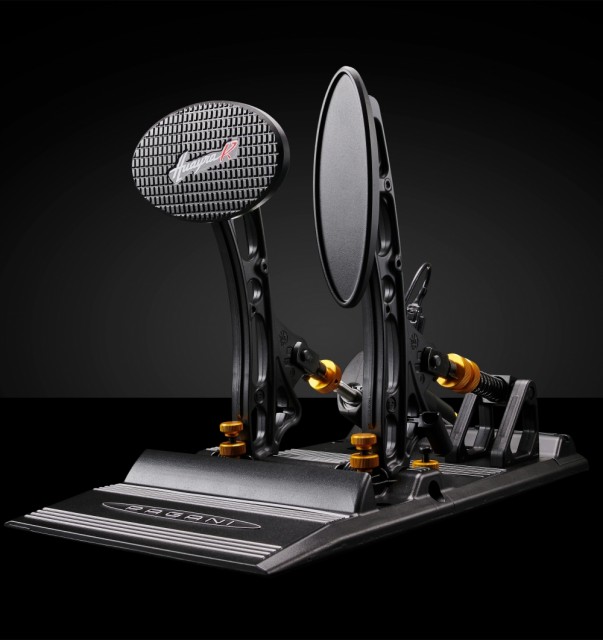

Asetek SimSports® Pagani Huayra R Sim Racing Pedals

The Pagani Huayra R Sim Racing Pedal Set is brought to life through a unique collaboration between Asetek SimSports™ and Pagani Automobili. Driven by a shared passion for performance and innovation, we – Asetek SimSports™ and Pagani Automobili – have joined forces to provide the closest experience you can get to the adrenaline rush of driving a Pagani Huayra R – one of the world’s most exclusive, high-performance hypercars.

The real-life Pagani Huayra R track car is a design of immense beauty and performance. It packs 850 horsepower and 750 Nm of torque in a mere 1.050 kilogram body. Manufactured in just 30 units with a base price of EUR 2.6 million (plus tax!), this is as exclusive as a supercar gets.

The pedal arms and footplates on the Pagani Huayra R Sim Racing Pedal Set are based on the exact design used in the hypercar itself, with just a few tweaks to fit it for sim racing use. The provided elastomer is designed to give the feel of the Huayra R´s brake pedal, using Asetek SimSports’ T.H.O.R.P.™ brake system (Twin Hydraulic Opposing Rapid Pistons).

The hydraulic sim racing pedals are plug’n’ play out of the box using the Asetek SimSports RaceHub™ software, which has been tailored to the Huayra R sim racing pedals. RaceHub enables quick and easy customization of the pedal settings as well as the configurable ARGB.

Overview: Asetek SimSports™ x Pagani

Asetek SimSports™ and Pagani Automobili. High-end sim racing products and exclusive hypercars. In our opinion: ideal partners.

We have teamed up to deliver custom-designed Pagani officially licensed sim racing products based on the Pagani Huayra R. The reason? Shared values and a genuine love of design, details, and performance.

Before shipping, all pedals are assembled and tested in Denmark. It truly is the peak of Italian design and Danish engineering, unified.

“When Asetek approached us to design and develop Pagani SimRacing products jointly, we felt it was an ideal match given Asetek’s focus on innovation, design, and extensive capabilities with software, hardware, and mechanics.” – Horacio Pagani, Founder & Chief Designer of Pagani Automobili S.p.A.

“As far back as I can remember, I have always been fascinated by Pagani. The attention to detail, the designs inspired by Horacio’s commitment to art and science working hand in hand combined with groundbreaking performance – basically everything Pagani stands for are personal values of mine.” – André Sloth Eriksen, CEO and founder of Asetek.

General Tech

• Italian design and Danish engineering, unified

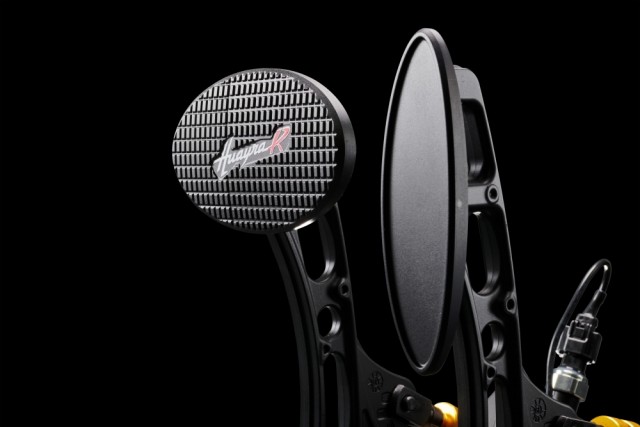

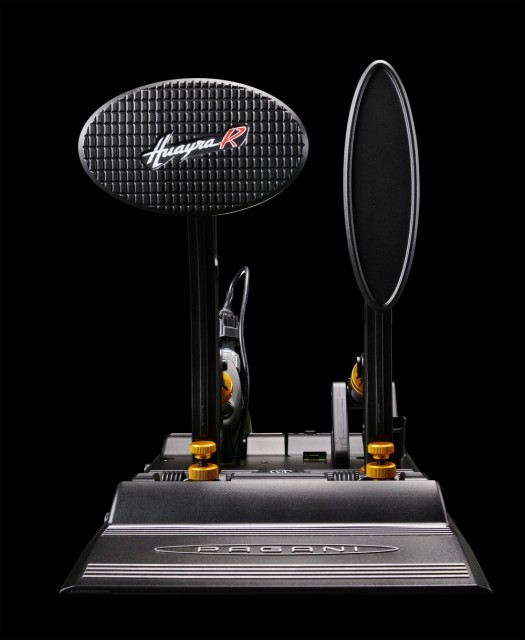

• Pedal arms and footplates based on real-life Pagani Huayra R track car
• Adjustable pedal stops and travel settings
• All black anodized aluminum pedal base, pedal arms, and pedal plates, with CNC machined contrast cut surfaces

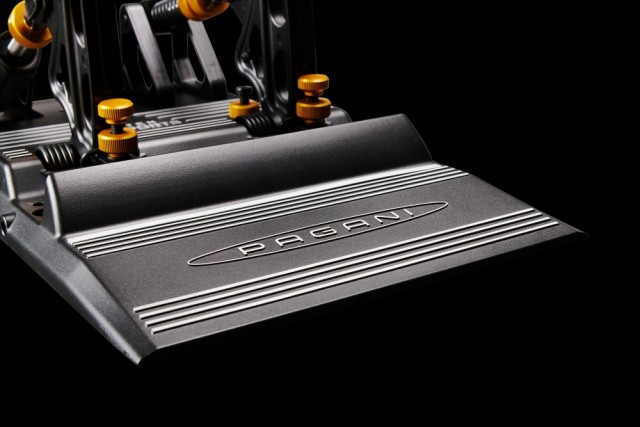

• Pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed, or turned completely off in the RaceHub™ software
• Adjustable pedal plates that can be moved along the x- and y-axis

• All adjustable mechanical features are by default colored gold
• Made in Denmark
• Sustainable manufacturing with 100% on-site re-use of waste material
• Tried and tested for hundreds of hours by real-world Formula and GT drivers and sim racing pros. Lifetime tested in automated mechanical rigs for a million activations
• Only one USB connection to the PC from the pedal base

Brake System

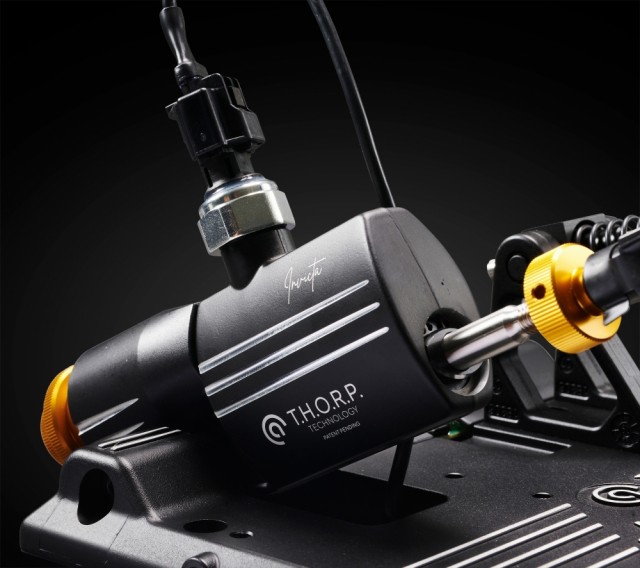

• Unique Twin Hydraulic Opposing Rapid Piston (T.H.O.R.P.™) brake system which provides a rock-hard brake pedal to mimic the feel of the Pagani Huayra R, including 2-stage racecar braking with minimum pedal travel
• Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point
• Made from forged aluminum

• Automotive-grade pressure sensor

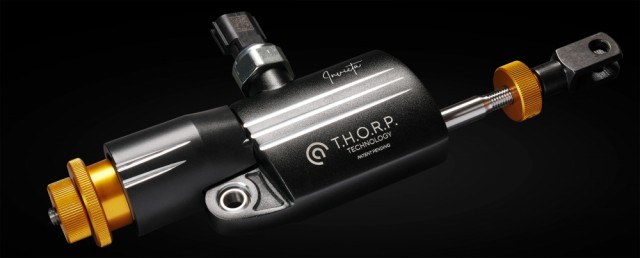

• The in-house designed brake cylinder features sleek CNC machined details, adding to the exquisite overall look.
• Three interchangeable elastomers for adjustment of hardness combined with an integrated physical stop and an expansion chamber to mimic perfect racecar feel as well as not overloading the elastomer
• Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance
• Pressure sensor measures 0-100 bar – tested to withstand a repetitive pressure of 100 bar (seal burst pressure 130 bar)

• 100 bar of pressure equals 180 kg of force on the face of the pedal plate
• Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!

Throttle System

• Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.

• 16-bit magnetic wireless hall TPS (throttle position sensor) with no mechanical wear and zero maintenance
• Adjustable pedal hardness, pedal travel, and pedal stop
• Interchangeable spring for bigger step in pedal hardness
• Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!

RaceHub™

• Pagani tailored RaceHub™ software that enables quick and easy customization of the pedal settings
• Calibrations made in RaceHub™ will automatically be saved in our EPROM (Erasable Programmable Read-Only Memory). This results in calibration (pressures, dead zones and more) that will be saved for every simulator/game (you do need to set 0 and 100% values in the game)
• Each pedal can be calibrated through the intuitive and easy-to-use RaceHub™ software
• Pedal upper and lower dead zones can be set through the RaceHub™ software

• Inhouse developed electronics with 16-bit resolution and automotive-grade pressure sensor
• Custom throttle curves can be adjusted and 100% customized in the RaceHub™ Software to mimic a real racecar butterfly opening. For example, a linear curve in dry conditions and a progressive in wet conditions
• Customizable and configurable ARGB lighting that can be controlled with RaceHub™ software or turned off

Dimensions

• Depth, width, and height: 457 mm x 212 mm x 256 mm
• Weight: 3 kg

Compatibility

• PC

•   Console support planned in the future
•   Assetto Corsa
•   Assetto Corsa Competizione
•   DiRT Rally
•   DiRT Rally 2.0
•   F1 Series
•   iRacing
•   Project Cars 2
•   rFactor 2
•   And many more (all games that accept direct input devices)

• Platforms: Windows 10, 11
