QS-CH1

PrisNOK158 750,00 inkl. mva.
Ca 12 ukers leveringstid. Frakt kommer i tillegg.
  • Produktinfo
  • Key Features
  • Inkludert
  • Spesifikasjon
  • Software
  • Produktanmeldelser (0)

QS-CH1 is an innovative training product designed for advanced simulation of various modes of transport. Its compact design based on the technology of linear actuators makes the driver move to the virtual world with the mapping of stimuli from the real world.

Electric actuators generate precise vibrations in real time and reproduce the finest details while driving – such as curves and obstacles on the racetrack. The lightweight and compact structure makes it easy to transport as well as service for multiple and variable installation.

PROFESSIONAL VEHICLE TRAINING SYSTEM

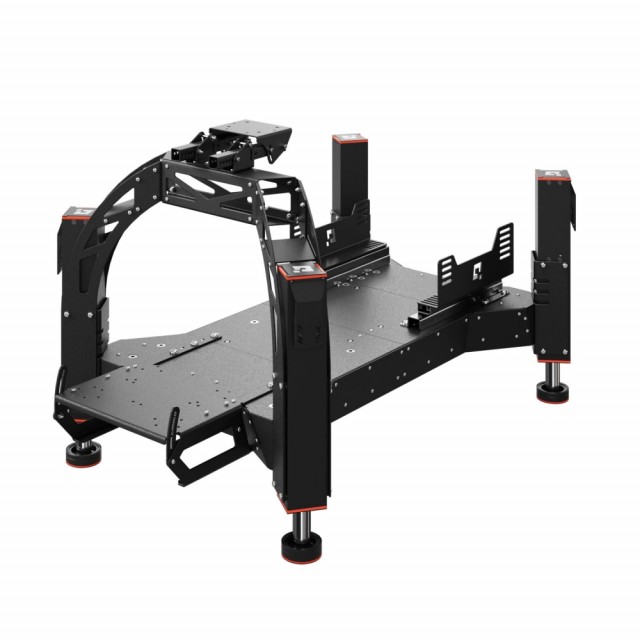

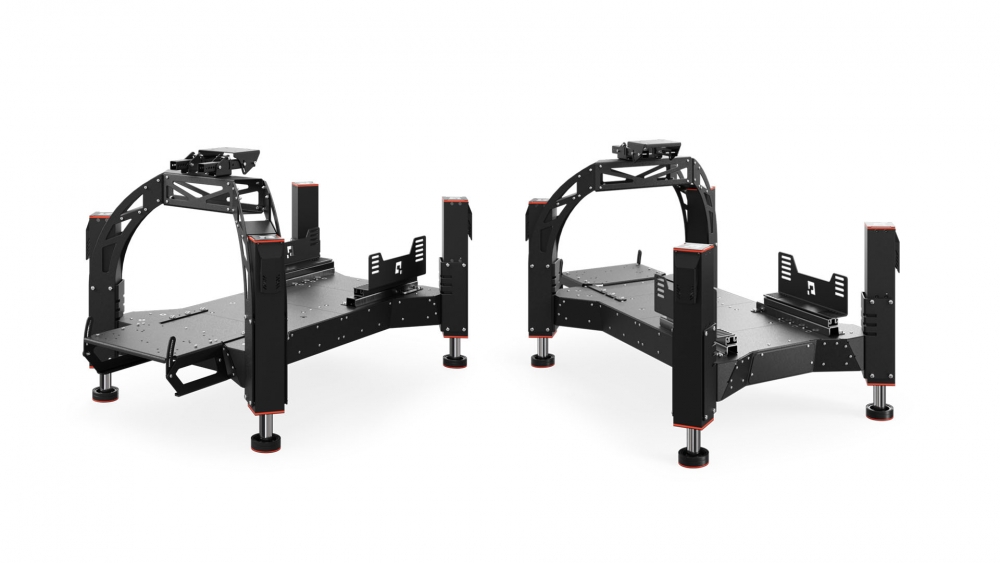

QS-CH1 is a brand new, modular, and flexibly configurable training product dedicated for advanced land vehicles and city car driving simulation. QS-CH1 is a part of the Qubic System product’s series. By using a number of expansion accessories, including manipulators and dedicated peripherals, it is possible to quickly build a simulator for future drivers or vehicle operators. The motion system consists of 3 DOF platform with electric actuators that provide cues for vehicle acceleration, road curvature and obstacles such as sidewalks and potholes.



QUALITY AND FUNCTION

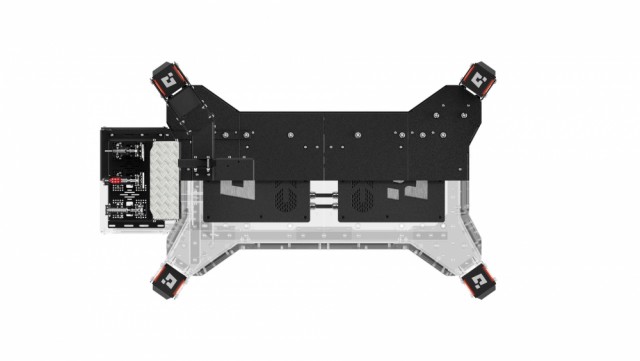

This motion system is the perfect solution for everyone who is looking for the most realistic simulation and reasonable, easy-to-use motion platform, which is designed for a continuous and maintenance-free operation. QS-CH1 only needs a 1.5 square meter place, and it is ideal for applications where the key is to reproduce the ergonomics of the original vehicle within a compact and mobile form. Power cabinets are located in the lower part of the QS-CH1 motion platform, under the cockpit, which significantly reduces the usable space and improves safety.

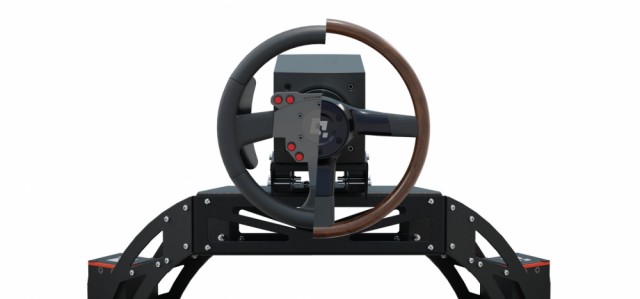

FULLY CUSTOMIZABLE DASHBOARD

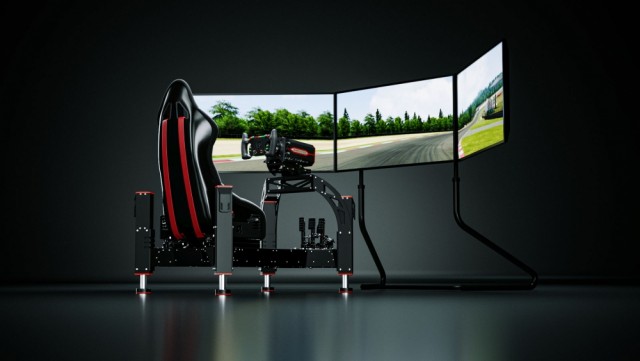

The motion system QS-CH1 gives the possibility to fit and install various dashboards and steering wheels in the easy way. This product opened up new possibilities for driving schools, car manufacturers and people running R&D projects related to land vehicles.

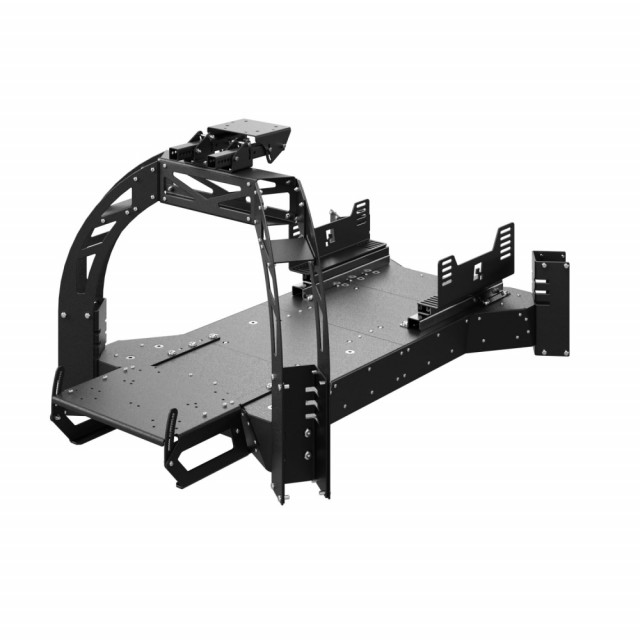

PRO VEHICLE FLOOR

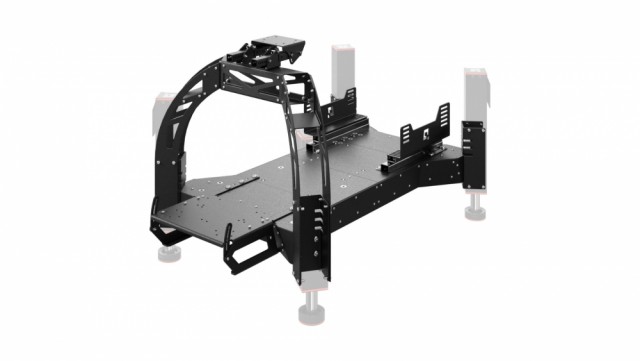

QS-CH1 device is a modular, and configurable training product dedicated for advanced land vehicles and city car driving simulation. Users who already have a motion base (motion platform) can only use a floor with seat and steering wheel mounting brackets, which can be easily and quickly

adapted to individual projects.





  • Euro 2 pallet dimension 1200 mm x 800 mm
  • Generate precise real-time vibrations up to 100 Hz
  • Ready to work in a few minutes
  • Extremely quiet and smooth operation
  • High performance devices with minimal power budget
  • Small footprint and lightweight body
  • Full and native hardware and software integration with the VR headset
  • Delivered with software management package and plugins.
  • Simulation software support

QS-CH1 FULL SET

2 x QS-220-PL motion set:
4x QS-L1 – linear actuator with stabilization plate
2x QS-SB2 – power cabinet (control module)
1x QS-SBML-2 – motion lock cable (up-link/down-link) – 2 meters long
1x Ethernet RJ-45 cable – 2 meters long
1x Power cable

1x QS-MC6 controller set:

1x M10 – USB controller
1x QS-SBML-1 – motion lock with additional cable
1x QS-MBT-1 – M-BUS terminator (RJ45 plug with resistor)
1x USB cable (mini)
1x Ethernet RJ-45 cable – 3 meters long

Dedicated, stiff rig with attaching points and mounting brackets:

2x mounting bracket: power cabinet
4x mounting bracket: actuator
1x mounting bracket: steering wheel with adjustment
1x mounting bracket: pedals
1x mounting bracket: racing seat with adjustment

QS-CH1 FULL SET

Architecture: 3DOF
Actuator stroke: 100 mm | 3.93 in
Vibration frequency range: 0-100 Hz
Maximum control frequency: 1000 Hz

Maximum velocity:
◦ Heavy Duty Mode (115/230V): 300 mm/s

Maximum acceleration:
◦ Heavy Duty Mode (115/230V): 0.4G*
*value of acceleration is limited for safety reasons

QS-CH1 SYSTEM PERFORMANCE

Heave: – 50 mm, 50 mm
Roll: -7.9°, 7.9°
Pitch: -5.1°, 5.1°

QS-CH1 DIMENSIONS

Total length: 1426 mm | 56 in
Total width: 856 mm | 33.7 in
Total height: 763 mm | 30 in

QS-CH1 PAYLOAD

Gross moving load: 300kg

POWER REQUIREMENTS

Power supply requirements: 115/230 VAC Single Phase

Average power consumption in 3DOF configuration:
◦ Q-Mode: 260W (230V)
◦ Performance Mode: 280W (230V), 270W (115V)
◦ Heavy Duty Mode: 436W (230V), 462W (115V)

Peak current for breaker specification in 3DOF configuration:
◦ Q-Mode: 5.17A (230V)
◦ Performance Mode: 4.55A (230V), 7.35A (115V)
◦ Heavy Duty Mode: 5.88A (230V), 9.89A (115V)

Connection: USB

Even most advanced hardware is nothing without good software. QubicManager powered by Motion Systems company is professional and specialized software for the platform and is click and play compatible with all major racing and flight titles on PC and constantly updated to support new applications as they are released. Gives user possibilities of motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles.

Over 80 integrated and supported racing and flight games.

Skriv en produktanmeldelse og del dine erfaringer med dette produktet med andre kunder.
